Electro-Optic Tuning in Composite Silicon Photonics Based on Ferroionic 2D Materials

USA, April 23, 2024 /EINPresswire.com/ -- The surging need for greater bandwidth in communication networks and advanced optical systems underscores the urgency for efficient, tunable optical materials capable of precise light modulation. Scientists in the UAE have responded by innovating a method to manipulate light with exceptional precision and minimal loss, integrating novel two-dimensional (atomically thin) materials into minuscule ring structures on silicon chips. This technique enhances device efficiency and compactness, promising to revolutionize applications in environmental sensing, optical imaging, and neuromorphic computing, where light sensitivity is key.

Tunable optical materials (TOMs) are revolutionizing modern optoelectronics. In integrated photonics circuits, precise control over the effective refractive index is crucial for unlocking groundbreaking applications. Two-dimensional materials such as Transition Metal Dichalcogenides (TMDs) and graphene offer exceptional optical responses to external stimuli. Yet, achieving distinct modulation across the short-wave infrared (SWIR) region, while maintaining precise phase control with minimal signal loss in a compact footprint, remains a persistent challenge.

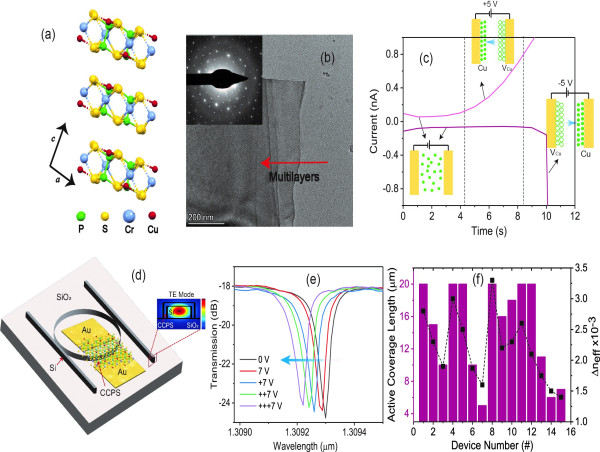

In a new paper (doi: https://doi.org/10.1038/s41377-024-01432-2) published in Light Science & Application, a team of scientists, led by Dr Ghada Dushaq and Professor Mahmoud Rasras Photonic Research Lab, Department of Electrical and Computer Engineering, New York University Abu Dhabi, Abu Dhabi, United Arab Emirates and co-workers have demonstrated a novel avenue for active light manipulation through the utilization of ferroionic 2D CCPS material. When integrated onto SiPh microring resonators, these materials exhibit a remarkable ability to finely tune the effective index of refraction without any attenuation of the optical signal. Remarkably, these integrated devices showcase low optical losses and exhibit an exceptional modulation efficiency (Vπ. L) of 0.25 V·cm, coupled with a consistent blue shift in resonance wavelengths across all devices. The ability to actively manipulate the electro-optic response in 2D CCPS at near-infrared wavelengths presents a pathway to more efficient and versatile optoelectronic devices, with implications spanning telecommunications, neuromorphic computing, and beyond.

The robust electro-refractive response of these devices hinges on the electronic properties of ferroionic 2D CCPS, significantly impacted by their bulk ionic conductivity. This pivotal aspect can be finely tuned through the manipulation of factors like poling time, polarization, and current direction. Such adjustments influence the migration of highly mobile copper (Cu) ions, underscoring the interconnected nature of material properties and device performance. These scientists summarize the operational principle of their devices:

“We have demonstrated a novel approach for actively manipulating light by employing ferroionic 2D CCPS material. Integrated into SiPh microring resonators, these materials showcase an exceptional ability to precisely adjust the effective refractive index without introducing any amplitude chirp. This capability is attributed to the tunable electrical conduction arising from the reversible migration of mobile Cu ions at the metal-semiconductor interface. The flexibility of the Cu–S bond facilitates Cu ion hopping between intralayer and interlayer sites, and even across the van der Waals (vdW) gap under an electric field. Consequently, optical tuning is achieved through the reversible process of extracting Cu ions from sulfur octahedra across van der Waals gaps and their reintercalation into the layers, a process that is reliably controlled by the applied voltage.”

“Remarkably, the application of a bias across the device does not affect the extinction ratios and the resonance linewidth. Therefore, the active migration of Cu ions has no impact on the imaginary part of the refractive index” they added.

“The combined optoelectronic and ionotronic functionalities in the two-terminal CCPS device hold potential for applications, including phased arrays, optical switching, environmental sensing and metrology, optical imaging systems, and neuromorphic systems in light-sensitive artificial synapses.” the scientists forecast.

DOI
10.1038/s41377-024-01432-2

Original Source URL
https://doi.org/10.1038/s41377-024-01432-2

Funding information
This work was supported by the NYUAD Research Enhancement Fund under grant Nos. 244, NYUAD Center for Cyber Security and NYUAD Center for Smart Engineering Materials under grant Nos. CG011.
