Gauging Nearby Infrastructure for Great Western Exploration’s Yandal West Gold Project

The Archaean greenstone belt of the Yilgarn Block has benefitted the gold mining companies’ profitability and has been explored using modern and highly efficient methods.

Before the 1980s, the region used to be considered as a hindrance for gold exploration employing conventional geochemical exploration techniques, confining to the areas of the outcrop. However, post the period, remarkable rise in gold price has paved the way for more developed and thorough geochemical exploration strategies to explore the lateritic regolith and basement rocks.

With the evolvement of geological techniques, an advanced method of data collection and sampling using technology completely changed the scenario. And, soon after that, the North Yilgarn featured world-class gold deposits, in which Yandal gold belt was first revealed in 1980s and since then it has been the destination to several multi-million-ounce discoveries.

In the same highly prospective Yandal gold belt lies the Yandal West gold project of Great Western Exploration Limited (ASX: GTE), where recent sampling confirmed high grade gold deposits.

For GTE project details, please read Assessing Great Western Exploration’s Projects vis-à-vis Market Opportunities

Great Western Exploration Limited owns the Yandal West gold project, which encompasses Ives Find historical goldfield (100%) and Harris Find historical goldfield (80%), in which three gold-bearing shear zones have been identified, namely Ives Find Shear Zone (IFSZ), Harris Find Shear Zone (HFSZ) and May Queen Shear Zone (MQSZ), accompanied by newly identified gold target along 2km north of Harris Find strike.

To know more about GTE, please click: Overview of Gold and Base Metal Explorer, Great Western Exploration Limited

In the milieu of which, let us evaluate the existing infrastructure and geology in the Yandal gold belt region to gauge the Yandal West gold project.

To begin with, let us start with the Yandal West available infrastructure in terms of transportation of equipment, consumables or ore to mention few.

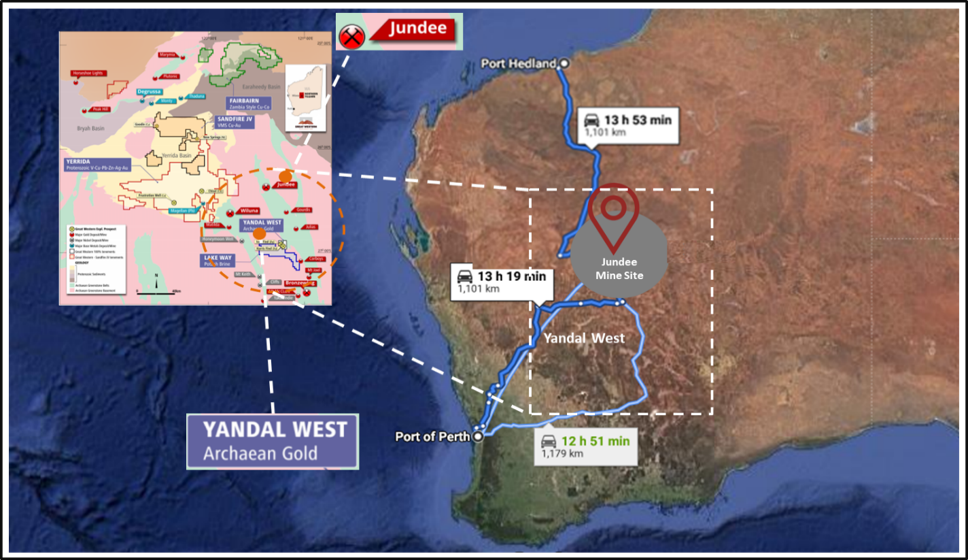

Location of Yandal West Gold Project


Source: Google Map and Kalkine Research

  • Location: Yandal West gold project is located 60 km south of the Jundee gold mine, which is very well placed and so do the GTE project with two-port available for the import of processing reagents. The Jundee mine is located at ~1179 km by road to the Port of Perth while ~1101 km to the Port of Headland. Also, it is worth mentioning that airstrip is available, which may be useful for the transportation of Dore or Bullion to the market.

  • Electricity: Most of the nearest mines such as Jundee, Wiluna and Matilda get access to power either using gas or diesel generation. For example, Jundee houses two powerhouse stations of total 36MW capacity, out of which 32MW is provided by gas and the remaining 4MW by diesel, whereas Matilda has a 12MW gas-fired power plant. The gas is supplied via the Goldfields Gas Pipeline as in case of Paroo Station Lead carbonate mine located in Wiluna, Western Australia.

In the bankable feasibility of Yandal gold project by Echo Resources Ltd (ASX: EAR), now acquired by Northern Star Resources Ltd (ASX: NST), EAR had mentioned that they were looking for a build-own-manage contract to run the Bronzewing power station for power supply to the projects.

Hence, the Yandal West gold project may be required to build its power station or can contract power through an existing nearby infrastructure, which will be clear at the time of the feasibility study.

The nearby mines of Yandal West have shown both open pit (OP) and underground (UG) mine type with visible gold as one of the mineralisation leading to gravity separation in the processing route to effectively recover the gold. For the same let us gauge through the proximity mines in the following section.

The Jundee mine at the northern Yandal greenstone belt possesses a brittle fault-fracture system and most of which are hosted in dolerite and then minor from basalt in felsic-intermediate porphyry. The mineralisation can be disseminated and hosted in vein style (carbonate vein) with abundant visible golds.

The Matilda mine is described by orogenic gold deposits with soft and deeply weathered mineralisation and the Wiluna mines are refractory ores with gold occurring as submicroscopic particles within fine-grained sulphides. Whereas, the Yandal gold project is supergene gold mineralisation associated with silicification, minor quartz veining and sulphide enrichment, principally pyrite.

The presence of both supergene and orogenic gold with refractor mineralisation has demonstrated both types of mine (OP and UG) with gravity separation mostly knelson concentrator noticed across the mines of Jundee, Matilda and Wiluna. The processing route is mainly crushing, grinding, gravity separation and Carbon in Pulp (CIP) or Carbon in Leach (CIL) circuit or both, Electrowinning and Furnace to Dore. Also, at the Wiluna mine, Bacteria Bio oxidation (BIOX) CIL circuit is installed to treat the refractory sulphide ore.

Consequently, the Yandal West gold project too may have both OP and UG mine type with processing as above since the Yandal gold project was planned to use the Bronzewing Treatment Plant with processing route as crushing, grinding (SAG/Ball), gravity separation followed by CIL and carbon elution circuits. The gold recovery from Gravity is 30% and the remaining 70% from Adsorption, Desorption and Recovery.

Interesting Read: Gold Dynamics; Great Western Exploration with High-Grade Yandal West Gold Project

How beneficial are the deposits at Yandal Gold Belt?

The acquisition of the Yandal gold project by Northern Star from Echo Resources right after the announcement of robust forecast economics of the project in the feasibility study is the testimony to the viability of the region. The Yandal gold project feasibility has depicted the mill head grade and gold recovery of ~2.15g/t and ~92%, respectively, with low bond index led to the All-In Sustaining Cost (AISC) to be in the range of A$1,035 to A$1,273.

The Yandal West gold project of GTE is aptly located with all the necessary infrastructure ranging from road, airstrip, ports and water. Whereas, power though not grid-connected but can easily be contracted or the company can have a gas fuel supply agreement to provide electricity to the mine site.

The processing activity of the nearby assets has also revealed the positivity of both OP and UG mine type with better bond index and recovery, which is expected to help the Yandal West gold project to sail through the economic study to reach the production stage.

Having said that all parameters and operational constraints are subject to future feasibility study of the Yandal West gold project.

Stock Price Information – The stock of Great Western Exploration last traded at $ 0.003 on 22nd January 2020, with a market cap of $ 3.76 million.
