Smarter sensing: one chip for the wide vacuum range

GA, UNITED STATES, June 23, 2025 /EINPresswire.com/ -- Vacuum sensors are indispensable in cutting-edge fields ranging from semiconductor manufacturing to space exploration. Yet current technologies often trade measurement range for accuracy—or vice versa. In response, researchers have introduced a novel micro-scale vacuum sensor that bridges this divide. Built on a dual-mode weak-coupling resonator (WCR), the sensor switches between two sensing modes to deliver both ultra-high sensitivity and stable accuracy across a wide pressure range (0.3–100,000 Pa). By combining two typically separate capabilities into one compact micro-electro-mechanical systems (MEMS) device, this innovation not only boosts performance but also simplifies system design—potentially transforming how vacuum is monitored in critical applications.

Accurate vacuum sensing is vital in controlling environments where minute changes in pressure can make or break entire processes. Traditional Pirani sensors offer broad range but fall short in accuracy and gas-independence, while capacitance diaphragm gauges (CDGs) provide high precision but within limited spans. Hybrid sensors that combine these often require bulky, multi-chip setups. Meanwhile, emerging mode-localized resonant sensors show promise for sensitivity, but struggle to maintain performance over wide pressure ranges. These limitations have long challenged engineers working in semiconductors, aerospace, and scientific instrumentation. Due to these persistent hurdles, there is an urgent need to rethink vacuum sensor design from the ground up.

A research team from the Aerospace Information Research Institute at the Chinese Academy of Sciences has proposed a breakthrough in vacuum sensing. Their study published on May 21, 2025, in Microsystems & Nanoengineering, details a novel micro-electro-mechanical systems (MEMS)-based sensor that integrates mode-localization and traditional resonance mechanisms on a single chip. Designed to toggle between modes depending on pressure levels, the sensor provides high resolution and stability across a wide pressure range. This design not only improves measurement performance but also reduces sensor size and dependency on gas types—key for harsh environments.

The innovation centers on a two-degree-of-freedom weak-coupling resonator (WCR) fabricated using MEMS bulk-silicon processing. Below 1,000 Pa, the sensor operates in mode-localized mode, where minute shifts in stiffness are detected through amplitude ratio changes, achieving a sensitivity of up to 30,000 ppm/Pa and a resolution of 0.1 Pa. When the pressure rises above 1,000 Pa, the sensor transitions to traditional resonance mode, where frequency becomes the output signal—delivering high linearity and a resolution of 2 Pa. Switching is controlled by tuning voltages that alter resonator stiffness and frequency alignment.

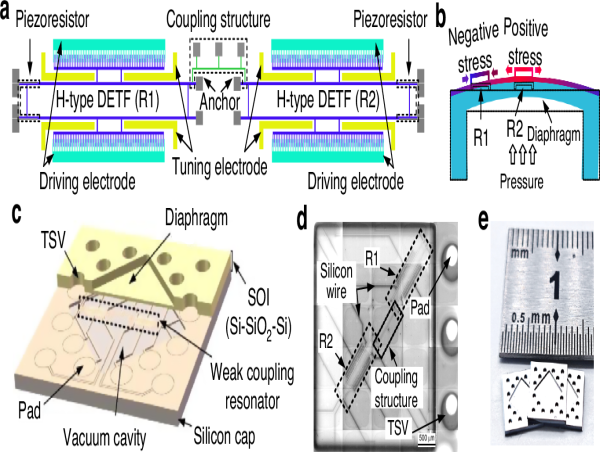

Structurally, the sensor includes two identical H-type double-ended tuning fork resonators anchored to a deformable diaphragm. This setup allows for differential sensing, reducing noise and common-mode stress. Housed in a vacuum-sealed cavity, the chip measures only 27.2 mm³—far smaller than existing commercial counterparts. Rigorous testing from −20 °C to 120 °C confirmed robust performance, low hysteresis, and minimal time drift. The sensor not only outperforms Pirani and CDG systems but also eliminates the need for multiple sensor integrations, streamlining both space and function in vacuum systems.

"Our sensor is designed to be both smart and adaptable," said Prof. Junbo Wang, the study's lead author. "By combining two sensing principles within a single MEMS platform, we've created a device that's compact, precise, and scalable. This dual-mode operation gives it a level of versatility that current vacuum sensors simply can't match. Whether it's for a chip fab or a space probe, this technology opens new possibilities for precision pressure monitoring."

The compact, high-performance design of this vacuum sensor positions it as a game-changing tool across multiple sectors. Its dual-mode capability allows seamless integration into semiconductor manufacturing lines, advanced vacuum chambers, and even planetary exploration equipment. The gas-independent architecture reduces calibration complexity, while its small size supports embedded deployment in miniaturized systems. As industries push for greater precision in smaller packages, this sensor offers a scalable solution that meets modern demands—delivering real-time, accurate vacuum monitoring from lab benches to Mars rovers.

References
DOI
10.1038/s41378-025-00937-z

Original Source URL
https://doi.org/10.1038/s41378-025-00937-z

Funding information
This work was supported in part by the National Key R&D Program of China under Grant 2023YFC2410600, in part by the National Natural Science Foundation of China under Grant 62301536 and Grant 62121003, in part by the Youth Innovation Promotion Association CAS Grant 2023134 and Grant 2022121, in part by the Instrument Research and Development of CAS under Grant PTYQ2024BJ0009, and in part by Science and Technology Program of Shandong Province under Grant 2023TSGC0211.
